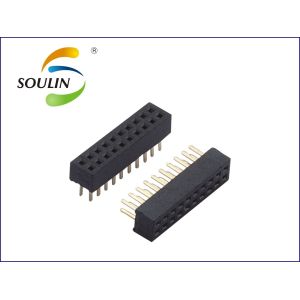

1.0mm Female Header Connector Dual Row

1.0mm pitch shenzhen factory waterproof gold plated customized female header dual row single plastic straight

• Female Header is a type of connector.
  This connector is widely used in electronic, electrical, instrument in the PCB circuit board, its role is in the circuit is blocked or isolated between the circuit, play a bridge function, take up the task of current or signal transmission.
  Usually used with row pin matching, forming a board-to-board connection; Or matching with the electronic wiring harness terminal, forming a board-to-wire connection; Can also be used independently for board to board connection.
  Because different products require different specifications, there are also a variety of sizes."
• Y-shaped terminal: it has two contacts with the pin, but the terminal is 0.64mm thick. The pin can be lengthened and the rubber core can be overlaid to realize the secondary heightening of the pin.U-shaped terminal: There are 3 contact points with the row pin, the contact point is on the top of the product, the contact is stable to avoid transient break in the process of signal transmission. U-type leakproof tin terminal: there are 3 contact points with the pin, the contact point is on the top of the product, the contact is stable, avoid transient during signal transmission, prevent tin from leaking into the terminal.
  O-type terminal: there are three contact points with the row pin, the contact point is in the center of the product, the contact is stable to prevent transient interruption during signal transmission.
  O-type leakproof tin terminal: there are 3 contact points with the pin, the contact point is in the center of the product, the contact is stable to prevent the signal transmission transient, prevent tin leakage into the terminal.

1.0mm Female Header Connector

Dual Row Female Header Connector

straight pin header 1.0mm

1.0mm Female Header Connector Dual Row Images
